HIGH STRENGTH STEELS (IN QUENCHED AND TEMPERED CONDITION)
| GRADE |
DIN NO |
YIELD (Reh) min |
TENSILE (Rm) |
°C |
IMPACT TEST VALUES
ENERGY (J)
k = 16mm |
| S690QL |
1.8928 |
690 |
770-940 |
-40 |
min. 27J |
| S690QL1 |
1.8938 |
690 |
770-940 |
-60 |
min. 27J |
| S890QL |
1.8963 |
890 |
940-1100 |
-40 |
min. 27J |
| S890QL1 |
1.8925 |
890 |
940-1100 |
-60 |
min. 27J |
| S960QL |
1.8933 |
960 |
980-1150 |
-40 |
min. 27J |
| S960QL1 |
1.8934 |
960 |
980-1150 |
-60 |
min. 27J |
Typical Applications: Lifting equipments, earth moving equipments (cranes, attachments), trailer frames, tanks
| MILL |
BRAND NAME |
|
MILL |
BRAND NAME |
| ThyssenKrupp |
Naxtra M700 / Xabo 890 / Xabo 960 |
|
VoestAlpine |
Aldur 700QL / Aldur 700M |
| Dillinger Hütte |
Dillimax 690T / Dillimax 890T |
|
Ilsenburger |
Maxil 690 / Maxil 960 |
HIGH YIELD STRENGTH STEELS FOR COLD FORMING
| GRADE |
DIN NO |
RUUKKI |
TATA STEEL |
ERDEMIR |
YIELD (Reh) min |
TENSILE (Rm) |
| S355MC |
1.0976 |
Laser 355 MC |
QStE380TM |
4936 |
355 |
430-550 |
| S420MC |
1.0980 |
Laser 420 MC |
QStE420TM |
4942 |
420 |
480-620 |
| S460MC |
1.0982 |
Laser 460 MC |
QStE460TM |
4946 |
460 |
520-670 |
| S500MC |
1.0984 |
OPTIM 500 MC |
QStE500TM |
4950 |
500 |
550-700 |
| S550MC |
1.0986 |
OPTIM 550 MC |
QStE550TM |
4955 |
550 |
600-760 |
| S600MC |
1.8969 |
OPTIM 600 MC |
QStE600TM |
4960 |
600 |
600-760 |
| S650MC |
1.8976 |
OPTIM 650 MC |
QSTE 690TM |
4965 |
650 |
600-760 |
| S700MC |
1.8974 |
OPTIM 700 MC |
YMPRESS S700MC |
4970 |
700 |
750-950 |

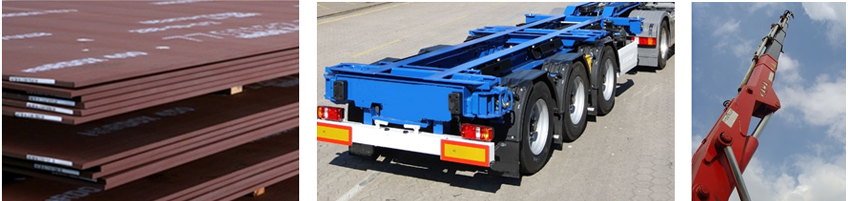

Typical Applications: Trailer frames, truck-automobile body parts, mobile crane booms
ABRASION RESISTANT STEELS
| GRADE |
DIN NO |
THICKNESS |
HARDNESS VALUES |
| 300 HB |
1.8704 |
4-50 mm |
270-340 BRINELL |
| 400 HB |
1.8714 |
3-120 mm |
360-440 BRINELL |
| 450 HB |
1.8722 |
3-100 mm |
410-490 BRINELL |
| 500 HB |
1.8734 |
5-60 mm |
450-530 BRINELL |
| 600 HB |
|
10-50 mm |
> 550 BRINELL |
| X120Mn12 |
1.3401 |
1,5 - 40 mm |
240-340 BRINELL |
| MILL |
BRAND NAME |
|
MILL |
BRAND NAME |
| SSAB |
Hardox |
|
VoestAlpine |
Durostat |
| Ruukki (SSAB) |
Raex |
|
Dillinger Hütte |
Dillidur |
| Ilsenburger |
Brinar |
|
Industeel |
Fora |
